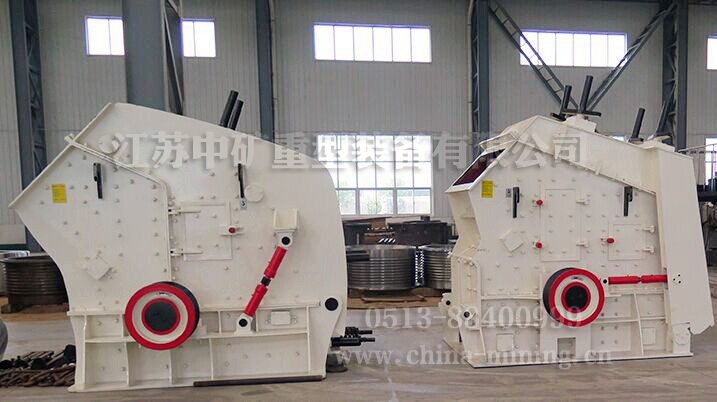

PF反擊式破碎機

丁寶勤 13906276368(技術)

電話：0513-88400999 傳真：0513-88400998 郵箱：jszk@vip.163.com

本系列產品具有二級反擊板、三級反擊板，能處理邊長100-180mm以下物料，使用于破碎中硬物料，其抗壓強度可達350兆帕，出料粒度比較小，物料顆粒度良好，呈立方體顆粒。轉子部件精心制作、轉子動，靜平衡好、機器運行平穩、噪音小。

The series of products has secondary and tertiary impact plates. It can handle the materials with a side length less than 100-180 mm. It is used for crushing materials with a medium hardness. The compressive strength reaches 350MPa,and the particle size is relatively small and good. showing a cubic shape. The rotor components are elaborate. The rotor has a good dynamic and static balance. The machine is in a stable operation with small noise.

產品特點Product features

■設計、破碎效果好

■轉子結構設計

■反擊架可調方便靈活

■選用部件材料

■良好的機架開啟結構設計

■高質量的焊接工藝技術

Unique design, good crushing effect

Excellent desing of the rotor structure

The adjustment of impact rack is convenient and flexible

Select the most durable materials

Good design of frame opening structure

High-quality welding technology

技術參數表|Technical Date

型號	原型號	轉子規格 (mm )	進料口尺寸 (mm )	進料上限 (mm )	生產能力 (t/h)	功率 (kw)	重量(kg )
PF1010II	PF-1010VI	Ф1000×1050	400×1080	350	50-80	55	12127
PF1210II	PF-1210VI	Ф1280×1050	400×1080	350	70-120	110	12500
PF1214II	PF-1214VI	Ф1280×1400	400×1430	350	95-145	132	15300
PF1315II	PF-1315VI	Ф1320×1500	800×1530	500	120-200	185	18920
PF1010III	PF-A-1010V	Ф1000×1050	400×1080	350	50-80	55	12820
PF1210III	PF-1210V	Ф1280×1050	400×1080	350	70-120	110	14100
PF1214III	PF-1214V	Ф1280×1400	400×1430	350	95-145	132	16800
PF1315III	PF-1315V	Ф1320×1500	800×1530	300	100-180	185	20975
PF1320 III	PF-1320V	Ф1320×2000	800×2030	400	280-320	280	29700
PF1420 III	PF-1420	Ф1400×2000	1250×2030	600	250-350	355	40000
PF1515III	PF-1515	Ф1500×1500	980×1610	500	220-280	280-315	30500
PF1620 III	PF-1620	Ф1600×2000	1600×2080	600-800	350-450	560	47500
