XL/XS洗砂機

丁寶勤 13906276368(技術)

電話：0513-88400999 傳真：0513-88400998 郵箱：jszk@vip.163.com

產品描述

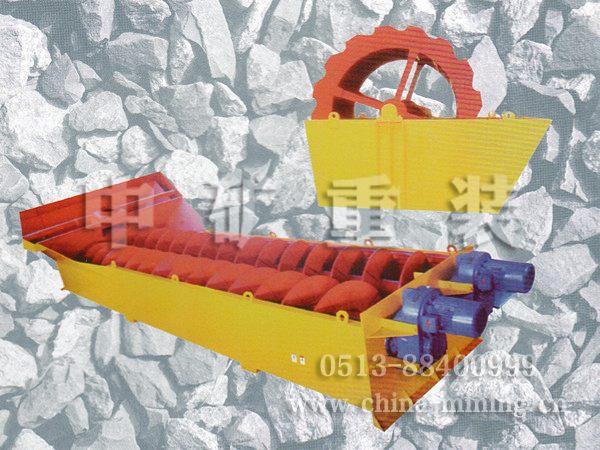

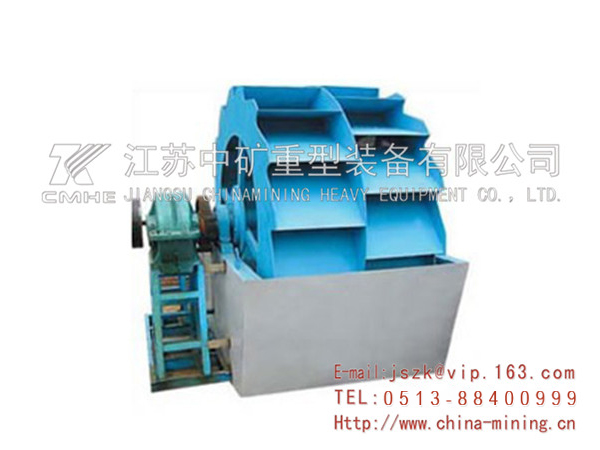

XL/XS洗砂機產品適用于建筑工地、砂石廠、混凝土大壩、玻璃廠石英砂及油井回填用壓力砂的洗選、分級和脫水。XL砂石洗選機按15°傾斜布置，水槽下部由三邊堰板包圍形成沉淀池，螺旋頭部沒入沉淀池內，螺旋由電動機經減速器驅動連續旋轉，由沉淀池底部多孔板給入清洗水。XS輪式洗砂機經電動機、減速機的傳動，驅動水槽中的葉輪不停地在水槽中作圓周性轉動，從而將水槽中的礦石或礦渣顆粒物料在水中攪拌、翻轉、淘洗并使受水物料在葉輪中脫水后排出。

XL/XS Screw sand washer is mainly used for sand processing, electric pole factory, building work site and concrete dam, various sands classifying and dewatering. This sand washer adopts inclination of 150,under the water tub, three weir plates form the sediment pool, the screw head is immersed in this pool. the screw is driven by electric motor through reducer rotating continuously, the fresh water is feeding from porous plate at bottom of sediment pool. XS Wheel type Sand washer is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry. water conservation and hydropower. cement station and so on.

技術參數表｜Technical Date

XL螺旋式洗砂機系列

型號	螺旋直徑 (mm)	水槽長度 (mm)	入選粒度 (mm)	處理能力(t/h)	螺旋轉速 (r/min)n)	電機功率 (kw)	耗水量 (t/h)	外形尺寸 (mm)	重量 (t)
XL915	915	7585	≤10	100	21	11	10-80	8500×2810×3600	6.27
2XL915	915	7585	≤10	200	21	2×11	20-160	8420×3765×3960	11.11
XL1115	1115	9782	≤10	175	17	15	20-150	10970×3945×4720	10.18
2XL1115	1115	9782	≤10	350	17	2×15	40-300	10970×5250×4720	17.94
